| Matrix Flares (Staged At Base) |
|
Matrix flare design requires that particular attention be made to the layout of the flare to ensure
that sufficient air gets to each burner. The layout can be tailored to the topography of the location,
and the flames can be hidden from sight by berms, sight fences, or a combination of the two.

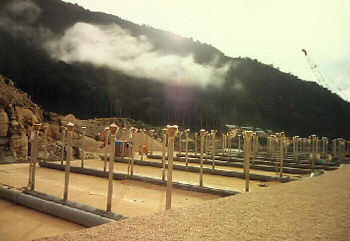

These images are of the burners and manifolds during construction they will later be covered with a
layer of gravel for radiation protection.
