Flame Front [FF]   And   Electronic [HE] Ignition & Monitoring Panel
FF+HE - Ignition with Pilot Flame monitoring, for easy field installation.

Rack with Piping and Control System for Pilot Gas, Ignition Gas, Ignition Air and Pilot Status.

Ignition of Pilots is either accomplished with Flame Front Ignition or with Electric Ignition at Local Panel or from Control Room. Status of Pilots is indicated locally by lights and if required also in DCS-System.


>> next

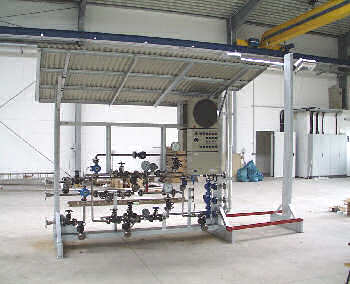

FF+HE - Panel
For Four Pilots
